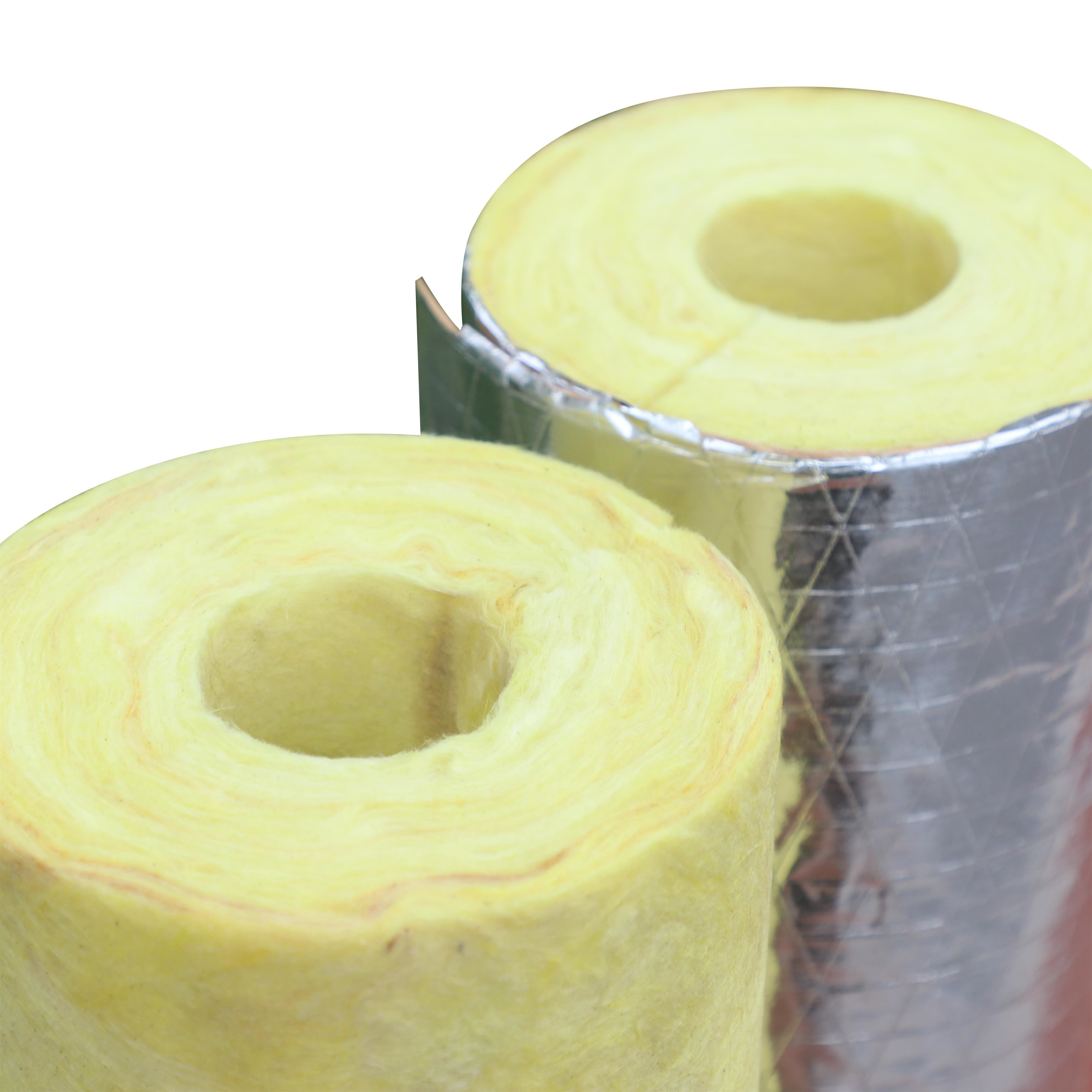

Product Description:
Our Fiberglass Pipe Insulation is designed to provide both Heat and
Sound Insulation, making it perfect for a wide range of
applications. Whether you're looking to insulate Hot/Cold Water
Pipes, HVAC Ducts, Cooling Pipelines, or Ventilation Ducts, our
fiberglass tube has you covered.
One of the key benefits of our Fiberglass Pipe Insulation is its
fireproof performance. This makes it an ideal choice for use in a
range of industrial and commercial settings where fire safety is a
top priority.
Our Fiberglass Pipe Insulation is also incredibly durable and
long-lasting. It's designed to withstand even the harshest
conditions and maintain its insulating properties for years to
come. This makes it a cost-effective choice for anyone looking to
improve the energy efficiency of their building or facility.
At Factory Direct, we're committed to providing our customers with
the highest quality insulation materials on the market. Our
Fiberglass Pipe Insulation is no exception. We offer competitive
pricing and fast shipping, so you can get the insulation you need
when you need it.
So if you're looking for a reliable, high-quality Insulation
Material for your pipes, ducts, or pipelines, look no further than
our Fiberglass Pipe Insulation. With its fireproof performance,
excellent insulating properties, and long-lasting durability, it's
the perfect choice for any industrial or commercial setting.
Technical Parameters:
Product Parameters for the Thermal Insulation Pipe
Recommended Thickness (mm) List
| Pipeline System Type | The Thickness of Glasswood Pipe Shell Applied in Different Pipeline
(mm) | Diameter of Branches | Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm |
|---|
| Air System Steaming and Water System High Temperature/High Pressure
System | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
| Medium Temperature/Medium Pressure System | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
| Low Temperature/Low Pressure System | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
| Low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
| Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
| Environment Temperature | Relative Humidity | System Working Temperature | 2℃ | 7℃ | 13℃ |
|---|
| 38℃ | 50%-60% | 25 | 25 | 25 |
| 70% | 40 | 30 | 30 |
| 80% | 75 | 60 | 50 |
| 85% | 100 | 90 | 75 |
| If the humidity exceeds 90%, some cooling water will appear on the
surface. In this condition, adding the waterproofing coat or PVC
plastic shell if necessary. |
| 32℃ | 50%-60% | 25 | 25 | 25 |
| 70% | 25 | 25 | 25 |
| 80% | 50 | 50 | 40 |
| 85% | 80 | 75 | 60 |
| 27℃ | 50%-70% | 25 | 25 | 25 |
| 80% | 50 | 40 | 30 |
| 85% | 75 | 65 | 50 |
| 21℃ | 50%-70% | 25 | 25 | 25 |
| 80% | 50 | 40 | 30 |
| 85% | 75 | 50 | 40 |
Product Size of the Glass Wool Pipe
| Density (kg/m3) | Thickness (mm) | Length (mm) | Diameter (mm) |
|---|
| 48-80 | 25-90 | 1000, 1200 | 18-529 |
Applications:
The fiberglass pipe insulation from Fanryn is designed to provide
efficient heat and sound insulation for various applications. It is
perfect for use in hot/cold water pipes, HVAC ducts, cooling
pipelines, and ventilation ducts. The product is made from
high-quality glass fiber pipe wrap that provides excellent
insulation properties and is easy to install.
This insulation material is perfect for use in commercial and
industrial applications, where safety and performance are
essential. It is an ideal solution for reducing heat loss and
improving energy efficiency in pipelines and ducts. The fireproof
performance of this product makes it ideal for use in areas where
fire safety is a concern.
As a factory-direct manufacturer, Fanryn provides high-quality
insulation products at competitive prices. The company is committed
to providing excellent customer service and ensuring that all
products meet the required quality standards.
In conclusion, if you are looking for thermal pipe insulation that
provides efficient heat and sound insulation for tube systems, the
fiberglass pipe insulation from Fanryn is an excellent choice. It
is fireproof, easy to install, and has excellent insulation
properties, making it perfect for use in various applications.
Support and Services:
Fiberglass Pipe Insulation is a thermal insulation designed to
provide energy efficiency, as well as thermal and acoustic
insulation to pipes. The product is made of glass fibers bonded
with a thermosetting resin and formed into flexible, semi-rigid or
rigid boards and pre-formed pipe insulation. This product is
suitable for both indoor and outdoor applications and can be used
for a variety of pipes such as hot and cold water, steam and
condensate, chilled water, and refrigeration lines.
Our technical support team is available to provide guidance on the
proper installation and use of our Fiberglass Pipe Insulation
products. We also offer services such as on-site inspections,
thermal imaging, and energy audits to help our customers optimize
their insulation system and reduce energy costs. In addition, we
provide training and educational resources to ensure that our
customers are equipped with the knowledge needed to properly
install and maintain our products.
Packing and Shipping:
Product Packaging:
- The Fiberglass Pipe Insulation product will be packed in durable,
high-quality cardboard boxes.
- The boxes will be labeled with the product name, dimensions, and
quantity.
- The insulation will be protected with additional cushioning
material to prevent any damage during transportation.
Shipping:
- The Fiberglass Pipe Insulation product will be shipped via ground
transportation.
- Shipping options will be provided at checkout, including expedited
shipping for urgent orders.
- Customers will receive a tracking number once their order has been
shipped.
- Delivery times may vary depending on the destination and shipping
method selected.
FAQ:
Q: What is the brand name of this fiberglass pipe insulation?
A: The brand name is Fanryn.
Q: Where is the fiberglass pipe insulation manufactured?
A: It is manufactured in China.
Q: Does this product have any certification?
A: Yes, it has SGS fireproof certificate.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 1*40 ft container.
Q: How is the price of this product determined?
A: The price is based on the specifications of the product.
Q: What is the packaging method for this product?
A: The product is packaged in plastic bags.
Q: How long does it take for the product to be delivered?
A: The delivery time is 7-15 work days.
Q: What are the payment terms for this product?
A: The payment terms are 100% TT.
Q: What is the supply ability of this product?
A: The supply ability is 300 containers per month.
