Product Introduction of the aluminum foil tape.
FANRYN aluminum foil tape is coated with high bonded rubber resin
adhesive or acrylic pressure sensitive
adhesive system that combines superior quick stick at fibrous and
sheet duct, providing an excellent vapor
seals; also conforms well to irregular surfaces; can stand extreme
temperature for Heating-Ventilation-
Air -Conditioning system and refrigerator industry.
FANRYN aluminum foil tape diversifies with Plain aluminum foil
tape, Foil-Scrim-Kraft tape, Aluminum
fiberglass tape, Aluminum foil tape without liner. The high grade
aluminum foil tape hold advanced flame
retardancy, level to UL 723 series, UL181A-P series and BS 476 Pt 6
& 7.
Product parameter of the aluminum foil tape.
| PLAIN ALUMINUM FOIL TAPE |
| Product | Carrier | Adhesive | Silicone Release Paper | Foil Thick (micron) | Peel Adhesion (n/25mm) | Rolling Tack (cm) | Temp Application (℃) |
| ALT-**H | Dead aluminum foil | Rubber Resin | Yes | 18~75 | 20~25 | 17~20 | +10 ~ +60 |
| ALT-**S | Dead aluminum foil | Solvent Acrylic | Yes | 18~75 | 14~16 | 12~15 | +10 ~ +80 |
| ALT-**W | Dead aluminum foil | Water Acrylic | Yes | 18~75 | 16~18 | 15~18 | +10 ~ +80 |
| FIRE RETARDANT PLAIN ALUMINUM FOIL TAPE |
| ALT-**HR | Dead aluminum foil | Fire Retardant Rubber Resin | Yes | 18~50 | 20~22 | 17~20 | +10 ~ +80 |
| ALT-**SR | Dead aluminum foil | Fire Retardant Solvent Acrylic | Yes | 18~75 | 14~16 | 12~15 | 0 ~ +100 |

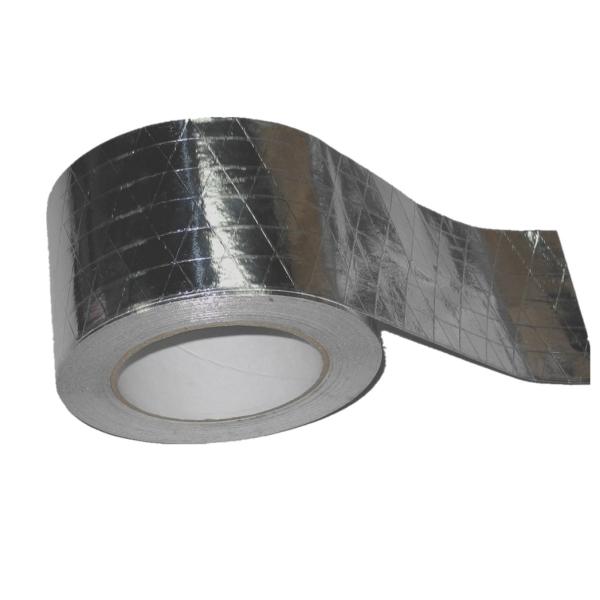

| FOIL-SCRIM-KRAFT TAPE |
| AFSK-701H | Dead aluminum foil 3 ways scrim Kraft paper | Rubber Resin | Yes | 7 | 22 | 20 | +10 ~ +60 |
| AFSK-701S | Dead aluminum foil 3 ways scrim Kraft paper | Solvent Acrylic | Yes | 7 | 16 | 15 | +10 ~ +80 |
| FIRE RETARDANT ALUMINUM FIBERGLASS TAPE |
| AFG-18HR | Alum fiberglass cloth | Fire Retardant Rubber Resin | Yes | 18 | 25 | 20 | +10 ~ +60 |
| AFG-18SR | Alum fiberglass cloth | Fire Retardant Solvent Acrylic | Yes | 18 | 18 | 10 | 0 ~ +80 |
| AFG-7SR | Alum fiberglass cloth | Fire Retardant Solvent Acrylic | Yes | 7 | 20 | 18 | 0 ~ +80 |
| ALUMINUM FOIL TAPE WITHOUT RELEASE PAPER |
| ALT-30SL | Dead aluminum foil | Solvent Acrylic | No | 30 | 10~14 | 10 | +10 ~ +80 |
| ALT-40SL | Dead aluminum foil | Solvent Acrylic | No | 40 | 10~14 | 10 | +10 ~ +80 |
| ALT-50SL | Dead aluminum foil | Solvent Acrylic | No | 50 | 10~14 | 10 | +10 ~ +80 |
Aluminum foil tape size:
Slitting roll: 48mm/50mm (2"), 60mm, 63mm (2.5"), 72mm/75mm (3"),
96mm/100mm (4"). 125mm (5") 5m, 9m, 10m, 20m, 36m, 45m, 100m.
Log roll: 600mm, 1000mm, 1020mm, 1200mm, 36m, 45m, 50m, 100m
Jumbo roll: 1000mm, 1020mm, 1200mm, 1000m, 1200m, 1350m.
Product feature and application of the aluminum foil tape.
The most significant usage range within the industrial, HVAC,
aerospace, and marine industries, applied as:
• Joining pipe insulation jackets
• Seaming fiberglass duct board
• Sealing insulation to create a vapor barrier
• Reflecting and dissipating both heat and light
• Patching sheet metal ductwork
• Protective masking during chemical paint stripping
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every
process
Q2: How to pack exported goods?
A2: shrink film + strong carton box (Standard Export Packing).
Q3: what is your lead time for one 20FT container order?
A3: Usual 15-20 work days after placing order
Q4: Can we get samples?
A4: yes, we supply free sample.
Q5: What is the advantage of your aluminum foil tape?
A5: Excellent peel adhesion and good initial tack bonding
