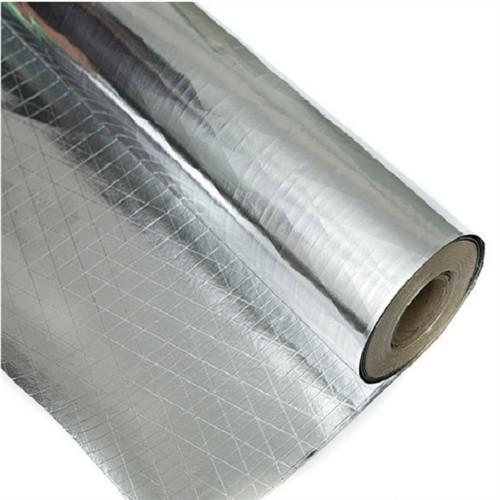

Product Introduction Of The DOUBLE SIDED REFLECTIVE FOIL FACING
Double sided reflective foil facing consists of aluminum foil,
Polypropylene adhesive, Kraft and fiberglass scrim reinforcement.
Polypropylene adhesive is utilized as the bonding agent. With light
weight and good flexibility, this insulation material is
widely used in residential, commercial and industrial buildings for
heat insulation.
It is extensively used as vapor barrier and radiant materials. All
the materials are manufactured and tested in strict conformation
with international standards.
Product Parameter Of The DOUBLE SIDED REFLECTIVE FOIL FACING
| Product | Construction |
| DFM 101A | Foil: 7 micron/ 3-ways scrim (8x12 threads/100mm)/ Polyethylene/
60gsm Kraft paper/ Polyethylene/ MPET: 12micron |
| DFC 1001A | Foil: 7 micron/ 3-ways scrim (8x12 threads/100mm)/ Polyethylene/
60gsm Kraft paper/ Polyethylene/ Foil:7micron |
| DFR 1001A | Foil: 7 micron/ 3-ways scrim (8x12 threads/100mm)/ Fire retardant
adhesive/ 60gsm Kraft paper/ Fire retardant adhesive/ Foil:7micron |
| DFC 1001B | Foil: 7 micron/ 2-ways scrim (12.5x12.5mm)/ Polyethylene/ 60gsm
Kraft paper/ Polyethylene/ Foil:7micron |
| DFR 1001B | Foil: 7 micron/ 2-ways scrim (12.5x12.5mm)/ Fire retardant
adhesive/ 60gsm Kraft paper/ Fire retardant adhesive/ Foil:7micron |
TYPICAL PHYSICAL PROPERTIES
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
| DFM 101A | 125 | 180 | 80 | 45 | 1.15 | 95% | -20~ +66 | ----- |
| DFC 1001A | 125 | 155 | 85 | 36 | 1.15 | 95% | -20~ +66 | ----- |
| DFR 1001A | 125 | 155 | 80 | 36 | 1.15 | 95% | -29~ +66 | Class 1 |
| DFC 1001B | 125 | 155 | 85 | 36 | 1.15 | 95% | -20~ +66 | ----- |
| DFR 1001B | 125 | 155 | 85 | 36 | 1.15 | 95% | -29~ +66 | Class 1 |
Product Feature And Application Of The DOUBLE SIDED REFLECTIVE FOIL FACING
Kraft paper standard weight is 60 ~100 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m,2000m
Inner core: 76mm
APPLICATION:
Double sided reinforced aluminum foil is made up by two layers'
aluminum foil, jacketed with between
one layer kraft paper and one layer scrim, used as vapor barrier
and insulation of roof and wall in
warehouse, cold room, and factory.
Production Details Of The DOUBLE SIDED REFLECTIVE FOIL FACING
Product Shipping Of The DOUBLE SIDED REFLECTIVE FOIL FACING
